ABOUT AQUAFLEX
Aquaflex provides a safe and precise solution for repair and connection applications in pipelines, wastewater treatment, drinking water, oil, gas, ship and energy sectors.
Applications:
- Waste Water
- Drinking Water
- Oil Distribution
- Gas Distribution
- Maintenance and repair
Advantages:
- Corrosion resistant
- Quick, safe and simple installation
- Applicable for under and above ground use Suitable for all pipe materials and reusable

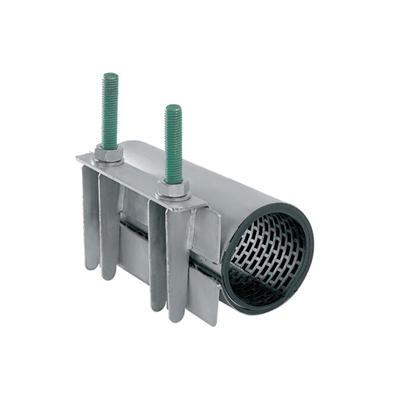

STAINLESS REPAIR CLAMP AQUAS10
STAINLESS REPAIR CLAMP AQUAS10
Designed for the repair of damage caused by Asbestos Cement Pipe, PE, PVC, GRP, Steel, Ductile, PIK and Galvanized pipes. Repair clamps are used on pipelines, wastewater systems, drinking water, chemical water distribution mining, oil and gas distribution, airports, sea ports and ships.
| WOKING RANGE OD (mm) | W.P Bar | 150mm | 200mm | 300 | 400mm |
|---|---|---|---|---|---|
| 40 – 44 | 16 | ✔ | ✔ | ||
| 48 – 52 | 16 | ✔ | ✔ | ✔ | |
| 54 – 58 | 16 | ✔ | ✔ | ✔ | |
| 60 – 67 | 16 | ✔ | ✔ | ✔ | |
| 67 – 74 | 16 | ✔ | ✔ | ✔ | |
| 70 – 77 | 16 | ✔ | ✔ | ✔ | |
| 73 – 80 | 16 | ✔ | ✔ | ✔ | |
| 76 – 83 | 16 | ✔ | ✔ | ✔ | |
| 82 – 89 | 16 | ✔ | ✔ | ✔ | ✔ |
| 87 – 94 | 16 | ✔ | ✔ | ✔ | ✔ |
| 91 – 98 | 16 | ✔ | ✔ | ✔ | ✔ |
| 95 – 102 | 16 | ✔ | ✔ | ✔ | ✔ |
| 102 – 112 | 16 | ✔ | ✔ | ✔ | ✔ |
| 106 – 116 | 16 | ✔ | ✔ | ✔ | ✔ |
| 108 – 118 | 16 | ✔ | ✔ | ✔ | ✔ |
| 113 – 123 | 16 | ✔ | ✔ | ✔ | ✔ |
| 118 – 128 | 16 | ✔ | ✔ | ✔ | ✔ |
| 120 – 130 | 16 | ✔ | ✔ | ✔ | ✔ |
| 125 – 135 | 16 | ✔ | ✔ | ✔ | ✔ |
| 132 – 142 | 16 | ✔ | ✔ | ✔ | ✔ |
| 135 – 145 | 16 | ✔ | ✔ | ✔ | ✔ |
| 145 – 155 | 16 | ✔ | ✔ | ✔ | ✔ |
| 151 – 161 | 16 | ✔ | ✔ | ✔ | |
| 165 – 175 | 16 | ✔ | ✔ | ✔ | |
| 170 – 180 | 16 | ✔ | ✔ | ✔ | |
| 176 – 186 | 16 | ✔ | ✔ | ✔ | |
| 180 – 190 | 16 | ✔ | ✔ | ✔ | |
| 186 – 196 | 16 | ✔ | ✔ | ✔ | |
| 193 – 203 | 16 | ✔ | ✔ | ✔ | |
| 200 – 210 | 16 | ✔ | ✔ | ✔ | |
| 205 – 215 | 16 | ✔ | ✔ | ✔ | |
| 209 – 219 | 16 | ✔ | ✔ | ✔ | |
| 219 – 229 | 16 | ✔ | ✔ | ||
| 222 – 232 | 16 | ✔ | ✔ | ||
| 230 – 240 | 16 | ✔ | ✔ | ||
| 237 – 247 | 16 | ✔ | ✔ | ||
| 239 – 249 | 16 | ✔ | ✔ | ||
| 243 – 253 | 16 | ✔ | ✔ | ||
| 250 – 260 | 16 | ✔ | ✔ | ||
| 252 – 262 | 16 | ✔ | ✔ | ||
| 261 – 271 | 16 | ✔ | ✔ | ||
| 266 – 276 | 16 | ✔ | ✔ |
STAINLESS REPAIR CLAMP
AQUAS10

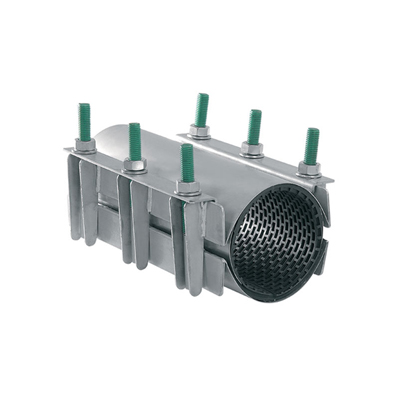

STAINLESS REPAIR CLAMP AQUAS20
STAINLESS REPAIR CLAMP AQUAS20
Designed for the repair of damage caused by Asbestos Cement Pipe, PE, PVC, GRP, Steel, Ductile, PIK and Galvanized pipes. Repair clamps are used on pipelines, wastewater systems, drinking water, chemical water distribution mining, oil and gas distribution, airports, sea ports and ships.
| WOKING RANGE OD (mm) | W.P Bar | 150mm | 200mm | 300 | 400mm | 500mm |
|---|---|---|---|---|---|---|
| 88-110 | 16 | ✔ | ✔ | ✔ | ✔ | |
| 100-120 | 16 | ✔ | ✔ | ✔ | ✔ | |
| 108-128 | 16 | ✔ | ✔ | ✔ | ✔ | |
| 114-134 | 16 | ✔ | ✔ | ✔ | ✔ | |
| 120-140 | 16 | ✔ | ✔ | ✔ | ✔ | |
| 130-150 | 16 | ✔ | ✔ | ✔ | ✔ | |
| 135-155 | 16 | ✔ | ✔ | ✔ | ✔ | |
| 140-160 | 16 | ✔ | ✔ | ✔ | ✔ | |
| 160-180 | 16 | ✔ | ✔ | ✔ | ✔ | |
| 165-185 | 16 | ✔ | ✔ | ✔ | ✔ | |
| 168-188 | 16 | ✔ | ✔ | ✔ | ✔ | ✔ |
| 170-190 | 16 | ✔ | ✔ | ✔ | ✔ | ✔ |
| 176-196 | 16 | ✔ | ✔ | ✔ | ✔ | ✔ |
| 190-210 | 16 | ✔ | ✔ | ✔ | ✔ | ✔ |
| 195-215 | 16 | ✔ | ✔ | ✔ | ✔ | ✔ |
| 210-230 | 16 | ✔ | ✔ | ✔ | ✔ | ✔ |
| 215-235 | 16 | ✔ | ✔ | ✔ | ✔ | ✔ |
| 225-245 | 16 | ✔ | ✔ | ✔ | ✔ | ✔ |
| 240-260 | 16 | ✔ | ✔ | ✔ | ||
| 268-288 | 16 | ✔ | ✔ | ✔ | ||
| 273-293 | 16 | ✔ | ✔ | ✔ | ||
| 282-302 | 16 | ✔ | ✔ | ✔ | ||
| 295-315 | 16 | ✔ | ✔ | ✔ | ||
| 310-330 | 16 | ✔ | ✔ | ✔ | ||
| 315-335 | 16 | ✔ | ✔ | ✔ | ||
| 320-340 | 16 | ✔ | ✔ | ✔ | ||
| 328-348 | 16 | ✔ | ✔ | ✔ | ||
| 335-355 | 16 | ✔ | ✔ | ✔ | ||
| 346-366 | 16 | ✔ | ✔ | ✔ | ||
| 360-380 | 10 | ✔ | ✔ | ✔ | ||
| 380-400 | 10 | ✔ | ✔ | ✔ | ||
| 395-415 | 10 | ✔ | ✔ | ✔ | ||
| 410-430 | 10 | ✔ | ✔ | |||
| 420-440 | 10 | ✔ | ✔ | |||
| 420-450 | 10 | ✔ | ✔ | |||
| 450-470 | 10 | ✔ | ✔ | |||
| 465-485 | 10 | ✔ | ✔ | |||
| 485-505 | 10 | ✔ | ✔ | |||
| 500-520 | 10 | ✔ | ✔ | |||
| 510-530 | 10 | ✔ | ✔ | |||
| 520-540 | 10 | ✔ | ✔ | |||
| 535-555 | 10 | ✔ | ✔ | |||
| 550-570 | 10 | ✔ | ✔ | |||
| 558-578 | 10 | ✔ | ✔ | |||
| 574-594 | 10 | ✔ | ✔ | |||
| 600-620 | 10 | ✔ | ✔ | |||
| 650-670 | 10 | ✔ | ✔ | |||
| 666-686 | 10 | ✔ | ✔ | |||
| 690-710 | 10 | ✔ | ✔ |
STAINLESS REPAIR CLAMP
AQUAS20

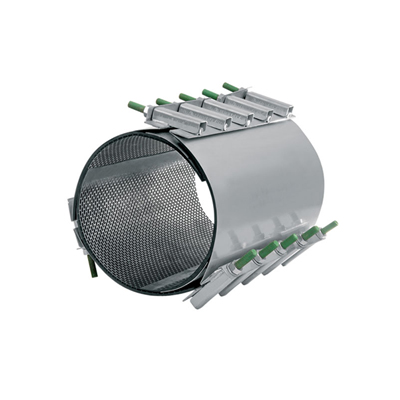

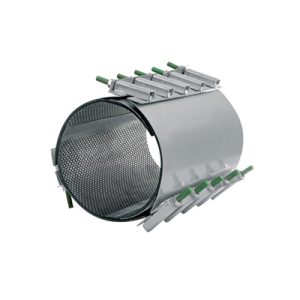

STAINLESS REPAIR CLAMP AQUAS30
STAINLESS REPAIR CLAMP AQUAS30
Designed for the repair of damage caused by Asbestos Cement Pipe, PE, PVC, GRP, Steel, Ductile, PIK and Galvanized pipes. Repair clamps are used on pipelines, wastewater systems, drinking water, chemical water distribution mining, oil and gas distribution, airports, sea ports and ships.
| WOKING RANGE OD (mm) | W.P Bar | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
|---|---|---|---|---|---|---|---|
| 88-110 | 16 | ✔ | ✔ | – | – | – | – |
| 100-120 | 16 | ✔ | ✔ | – | – | – | – |
| 108-128 | 16 | ✔ | ✔ | – | – | – | – |
| 114-134 | 16 | ✔ | ✔ | – | – | – | – |
| 120-140 | 16 | ✔ | ✔ | – | – | – | – |
| 130-150 | 16 | – | ✔ | – | – | ||
| 135-155 | 16 | – | ✔ | ✔ | ✔ | – | – |
| 140-160 | 16 | – | ✔ | ✔ | ✔ | – | – |
| 160-180 | 16 | – | ✔ | ✔ | ✔ | – | – |
| 165-185 | 16 | – | ✔ | ✔ | ✔ | – | – |
| 168-188 | 16 | – | – | ✔ | ✔ | ✔ | – |
| 170-190 | 16 | – | – | ✔ | ✔ | ✔ | – |
| 176-196 | 16 | – | – | ✔ | ✔ | ✔ | – |
| 190-210 | 16 | – | – | ✔ | ✔ | ✔ | – |
| 195-215 | 16 | – | – | ✔ | ✔ | ✔ | – |
| 210-230 | 16 | – | – | ✔ | ✔ | ✔ | – |
| 215-235 | 16 | – | – | ✔ | ✔ | ✔ | – |
| 225-245 | 16 | – | – | ✔ | ✔ | ✔ | – |
| 240-260 | 16 | – | – | ✔ | ✔ | ✔ | – |
| 268-288 | 16 | – | – | ✔ | ✔ | ✔ | ✔ |
| 273-293 | 16 | – | – | ✔ | ✔ | ✔ | ✔ |
| 282-302 | 16 | – | – | ✔ | ✔ | ✔ | ✔ |
| 295-315 | 16 | – | – | – | ✔ | ✔ | ✔ |
| 310-330 | 16 | – | – | – | ✔ | ✔ | ✔ |
| 315-335 | 16 | – | – | – | ✔ | ✔ | ✔ |
| 320-340 | 16 | – | – | – | ✔ | ✔ | ✔ |
STAINLESS REPAIR CLAMP
AQUAS30

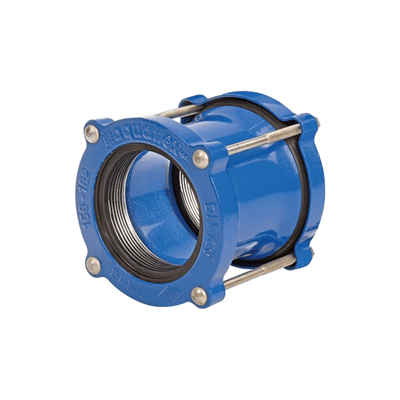

UNIVERSAL COUPLING AQUASAUC
UNIVERSAL COUPLING AQUASAUC
Designed for strong and safe pipe connection applications. They are specially manufactured for adapting all different pipe diameters and types. Scale and dimensions of equipment can be changed as variety of pipe material.
| DN in Inches | DN Millimeters | Working Range |
|---|---|---|
| Rings GGG50 – Body Steel | ||
| 2.5″ | 65 | 70 – 85 |
| 3″ | 80 | 88 – 120 |
| 4″ | 100 | 107 – 125 |
| 4″ | 100 | 111 – 129 |
| 5″ | 125 | 132 – 146 |
| 5″ | 125 | 147 – 164 |
| 6″ | 150 | 160 – 182 |
| 7″ | 175 | 190 – 207 |
| 8″ | 200 | 218 – 235 |
| 8″ | 200 | 231 – 249 |
| 9″ | 225 | 250 – 268 |
| 10″ | 250 | 268 – 287 |
| 12″ | 300 | 315 – 335 |
| 12″ | 300 | 322 – 342 |
| 12″ | 300 | 332 – 352 |
| RINGS AND BODY STEEL | ||
| 14″ | 350 | 351 – 371 |
| 14″ | 350 | 374 – 394 |
| 14″ | 350 | 392 – 412 |
| 16″ | 400 | 416 – 436 |
| 18″ | 450 | 475 – 495 |
| 18″ | 450 | 500 – 520 |
| 20″ | 500 | 525 – 545 |
| 20″ | 500 | 554 – 574 |
| 24″ | 600 | 630 -650 |
| 24″ | 600 | 662 – 682 |
| 24″ | 600 | 675 – 695 |
UNIVERSAL COUPLING
AQUASAUC

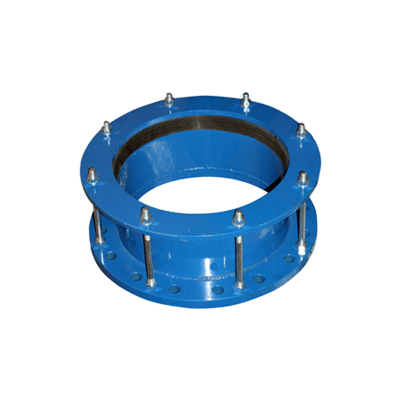

UNIVERSAL FLANGE ADAPTOR AQUASAUFA
UNIVERSAL FLANGE ADAPTOR AQUASAUFA
Designed for strong and safe pipe connection applications. They are specially manufactured for adapting all different pipe diameters and types. Scale and dimensions of equipment can be changed as variety of pipe material.
| DN in Inches | DN Millimeters | Working Range |
|---|---|---|
| 2″ | 50 | 59-73 |
| 2.5″ | 65 | 70-85 |
| 3″ | 80 | 88-102 |
| 4″ | 100 | 107-125 |
| 5″ | 125 | 132-146 |
| 5″ | 125 | 132-146 |
| 6″ | 150 | 139-153 |
| 7″ | 175 | 190-207 |
| 8″ | 200 | 218-235 |
| 9″ | 225 | 250-268 |
| 10″ | 250 | 268-287 |
| 12″ | 300 | 322-342 |
| 14″ | 350 | 344-360 |
| 14″ | 350 | 374-391 |
| 16″ | 400 | 391-407 |
| 16″ | 400 | 417-437 |
| 18″ | 450 | 447-467 |
| 18″ | 450 | 480-500 |
| 20″ | 500 | 526-546 |
| 24″ | 600 | 600-620 |
| 24″ | 600 | 630-650 |
| 30″ | 750 | 752-772 |
UNIVERSAL FLANGE ADAPTOR
AQUASAUFA
